DIODES TL431BSA-7, IC-431 REFERENCE Z-DIODE ADJ SOT23-3

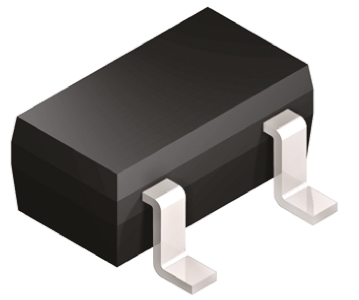

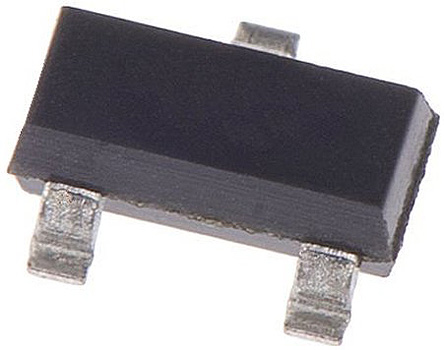

The DIODES TL431BSA-7 is a three-terminal adjustable shunt regulator diode that provides a stable voltage reference. This component is essential in applications requiring precise voltage regulation. Encased in a compact SOT23-3 package, it ensures high reliability and performance in diverse electronic circuits. The TL431BSA-7 operates with an adjustable output voltage ranging from 2.495V to 36V, making it highly versatile for various voltage regulation needs.

Potential Benefits of Using the DIODES TL431BSA-7, Three-Terminal Adjustable Shunt Regulator Diode

• SOT23-3 package for space-saving design
• Fast turn-on response time
• High stability over temperature and time
• Precise voltage control for consistent performance
• Versatile applications due to a wide adjustable voltage range
• Space-saving design ideal for compact circuits
• High reliability in various environmental conditions
• Low power consumption with efficient performance
• Cost-effective solution for voltage regulation
• Easy to integrate into existing circuit designs

Versatile Uses of the DIODES TL431BSA-7, Three-Terminal Adjustable Shunt Regulator Diode

• Power Supplies (Switching and Linear)
• Voltage Monitoring and Control
• Precision Reference in A/D and D/A Converters
• Adjustable Power Supplies
• Battery-Operated Devices
• Overvoltage/Undervoltage Protection Circuits
• Precision Regulators for Telecommunication Equipment
• Portable Electronics
• Industrial Control Systems
