HT Part No. HT23438
Mfr. Part No. T410-600T
Manufacturer: STMicroelectronics
Technical Documents: 4A Triacs Datasheet-be742d51(datasheets)
| Product Attributes | |
|---|---|
| Rated Average On-State Current | 4A |
| Mounting Type | Through Hole |

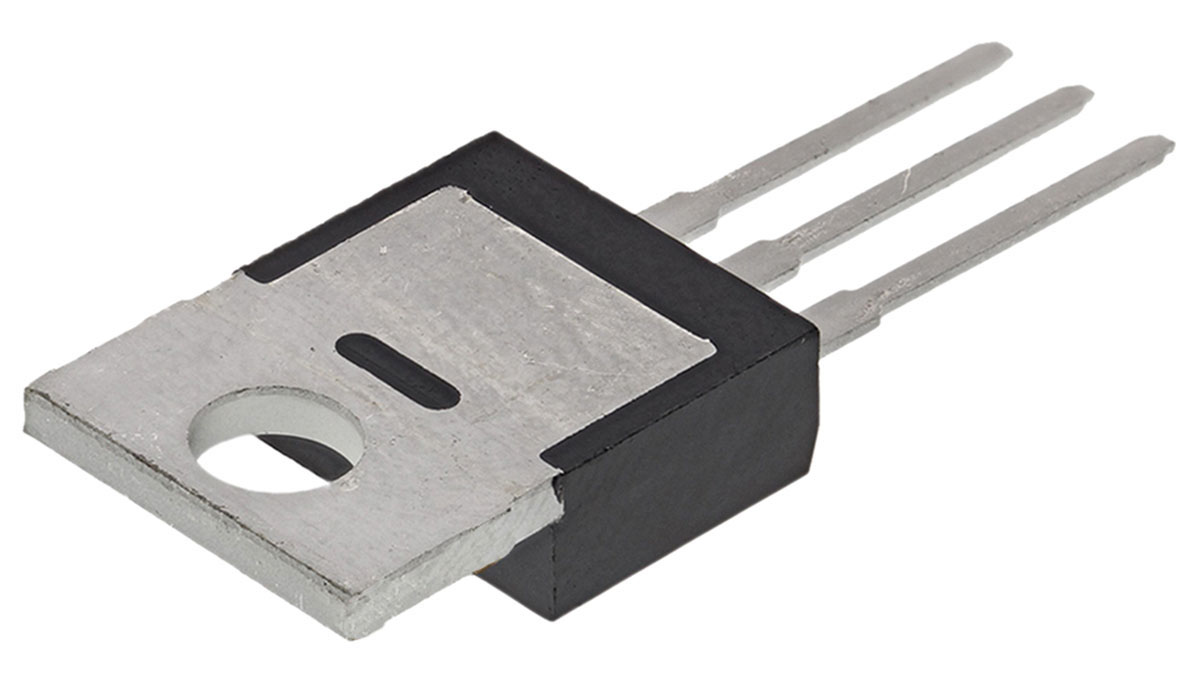

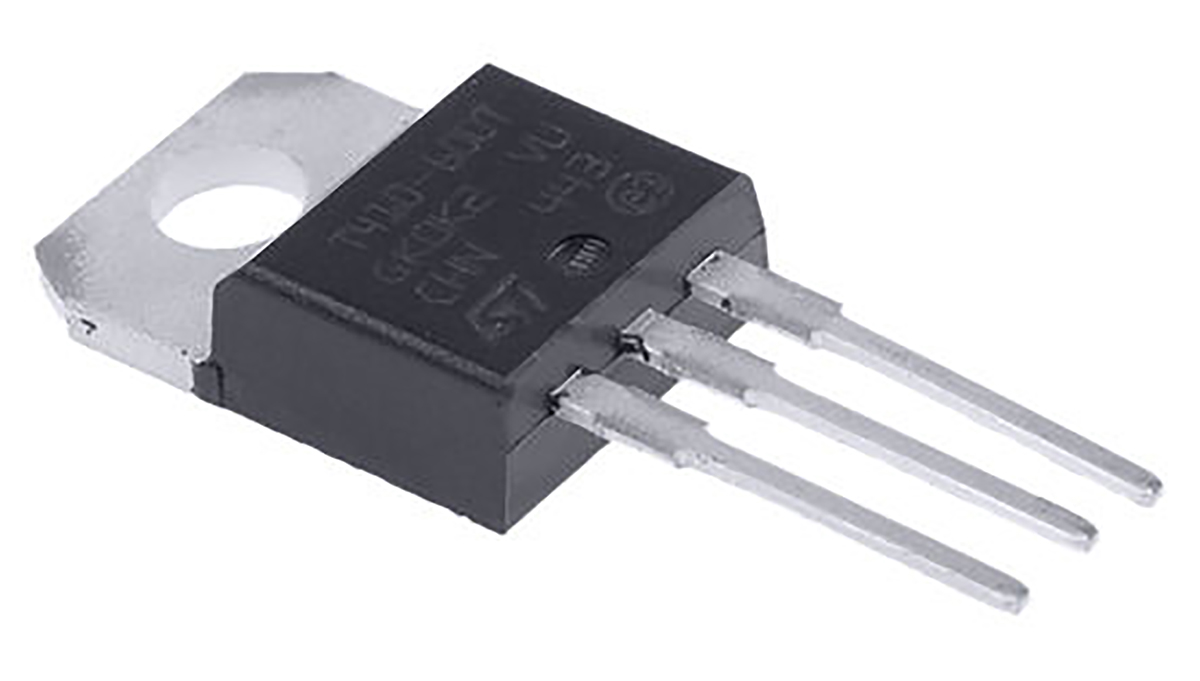

| Package Type | TO-220AB |
| Maximum Gate Trigger Current | 10mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 31A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 15mA |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 9.15mm |
| Repetitive Peak Off-State Current | 0.005mA |
| Peak On-State Voltage | 1.56V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| 3D Model | https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=80685&DisplayLogo=False |
