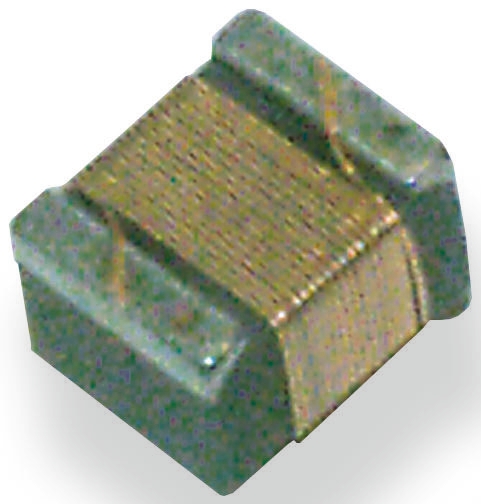

MURATA LQW15AN12NG00D, INDUCTOR FIXED 0402 12nH 500mA SMD

LQW15AN12NG00D
brand logo

HT Part No. HT194970

Mfr. Part No. LQW15AN12NG00D

Manufacturer: MURATA

Technical Documents: Datasheet(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.040
Units Per Unit Price
10 - 9999 £ 0.040
10000 + £ 0.032
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Shielding Unshielded
Inductance 12nH
Mounting Type SMT
Applications General Purpose
Length 1.00mm
Pitch None
Current Rating 500mA
Tolerance ±2%
Operation Temperature -55°C ~ +125°C
Technology Wire Wound
Current - Saturation (Isat) N/A
Diameter N/A
Height 0.50mm
Packaging TAPE&REEL
Manufacturer MURATA
Series LQW15
Package / Case 0402 (1005 Metric)
DC Resistance (DCR) 140m Ohms
Width 0.50mm
Rohs ROHS

More Information

The MURATA LQW15AN12NG00D is a high-performance fixed inductor designed for compact, high-frequency applications. This 0402 SMD inductor offers a nominal inductance of 12nH and can handle up to 500mA of current, making it ideal for use in modern electronic devices. Its compact size and surface-mount package ensure easy integration into tight spaces, while its reliable performance supports stable operation in a variety of circuits.

Salient Features and Benefits of Using the MURATA LQW15AN12NG00D, Fixed Inductor

  • Surface-mount design (SMD) in 0402 package
  • High-frequency operation
  • Low DC resistance
  • Compact size facilitates use in space-constrained designs
  • High current handling capability ensures robust performance
  • Low resistance improves efficiency and reduces heat

Usage Information of the MURATA LQW15AN12NG00D, Fixed Inductor

  • RF and Microwave Circuits
  • High-Speed Digital Circuits
  • Power Management Systems
  • Filtering and Tuning Applications
