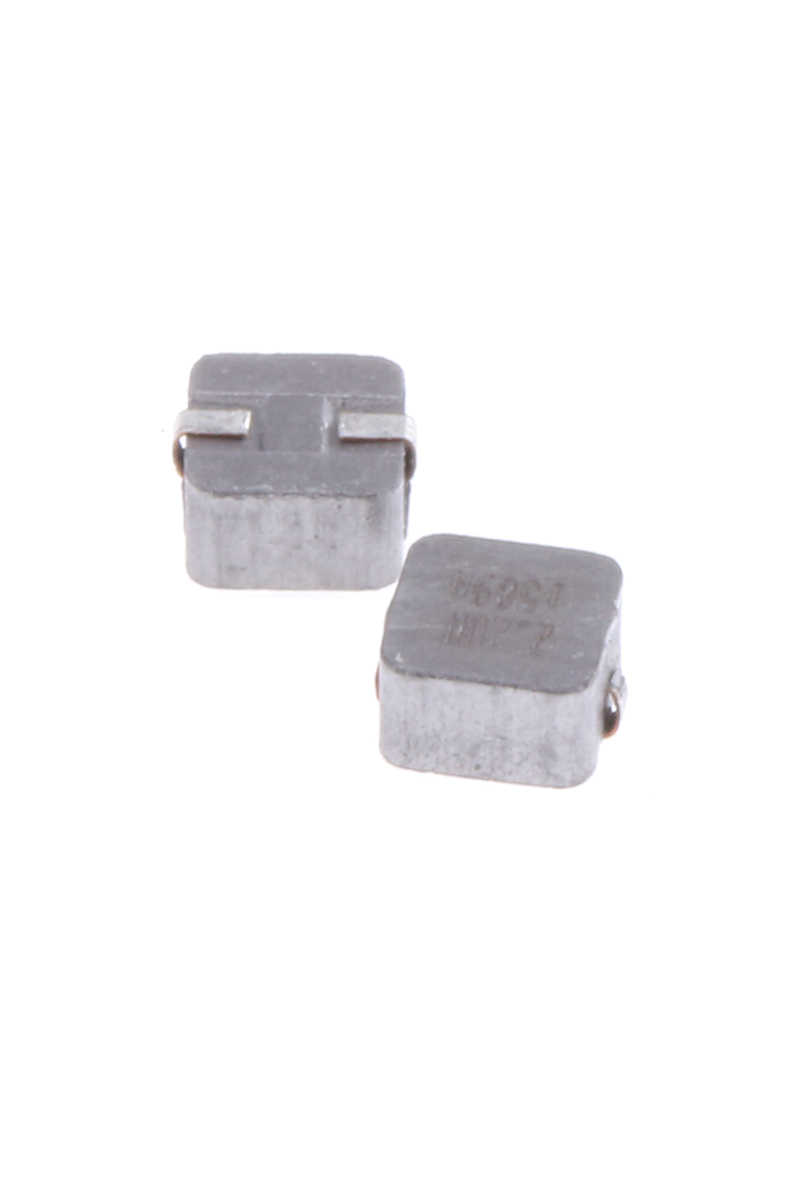

IHLP1212BZER2R2M11 - INDUCTOR FIXED 2.2uH 3.65X3.X2mm SMD

IHLP1212BZER2R2M11
brand logo

HT Part No. HT194959

Mfr. Part No. IHLP1212BZER2R2M11

Manufacturer: VISHAY

Technical Documents: Datasheet(datasheets)

9 - In Stock pcs
Price:
£ 0.52
Units Per Unit Price
1 - 2999 £ 0.52
3000 + £ 0.48
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Technology Molded
Width 3.00mm
Operation Temperature -55°C ~ +125°C
Manufacturer VISHAY
Series IHLP
Current Rating 3A
Inductance 2.2uH
Tolerance ±20%
DC Resistance (DCR) 42.9m Ohms
Packaging TAPE&REEL
Mounting Type SMT
Package / Case Non Standard
Current - Saturation (Isat) N/A
Applications General Purpose
Length 3.65mm
Pitch None
Shielding Shielded
Diameter N/A
Height 2.00mm
Rohs ROHS

More Information

The VISHAY IHLP1212BZER2R2M11 is a fixed inductor designed for surface-mount device (SMD) applications. This inductor has a 2.2µH inductance and measures 3.65mm x 3.0mm x 2.0mm, making it compact and suitable for high-density PCB layouts. It is known for its high efficiency, low profile, and excellent current handling capabilities. This passive electronic component stores energy in a magnetic field when an electrical current passes through it.

Possible Advantages of Using the VISHAY IHLP1212BZER2R2M11, Fixed Inductor

  • Reduces power losses in circuits.
  • Suitable for space-constrained applications.
  • Capable of handling significant currents without degradation.
  • Ideal for modern, compact electronic designs.
  • Performs reliably over a wide temperature range.

Wide Range of Applications

  • Power Supplies: Used in DC-DC converters and power regulation circuits.
  • Automotive Electronics: Suitable for in-vehicle electronics due to robustness.
  • Consumer Electronics: Used in smartphones, tablets, and other portable devices.
  • Telecommunications: Integral in network equipment and devices.
  • Industrial Electronics: Employed in control systems and automation equipment.
