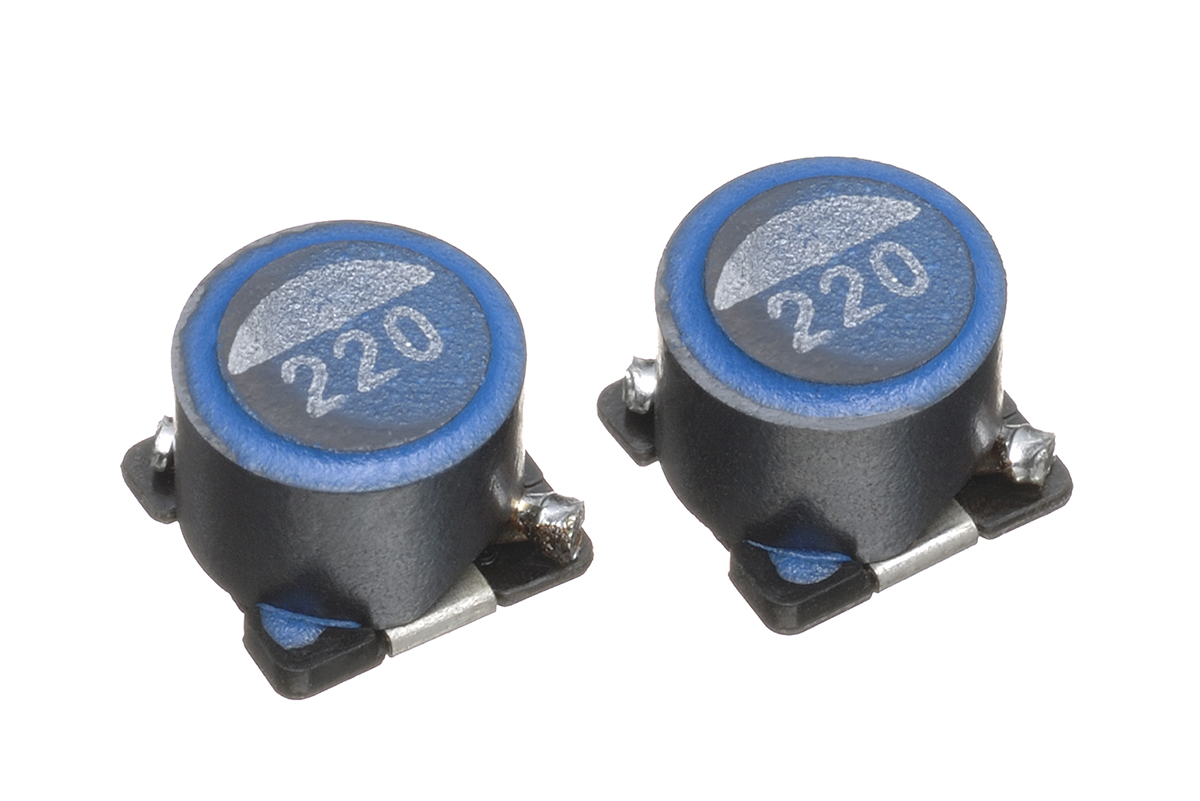

TDK SLF10145T-220M1R9-PF, INDUCTOR FIXED 22Uh SMD

SLF10145T-220M1R9-PF
brand logo

HT Part No. HT194693

Mfr. Part No. SLF10145T-220M1R9-PF

Manufacturer: TDK

Technical Documents: Datasheet(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.28
Units Per Unit Price
1 - 499 £ 0.28
500 + £ 0.24
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Manufacturer TDK
Rohs ROHS
Series SLF
Package / Case Non Standard
Applications General Purpose
Mounting Type SMT
Technology Wire Wound
Tolerance ±20%
DC Resistance (DCR) 59.1m Ohms
Inductance 22uH
Current - Saturation (Isat) N/A
Diameter N/A
Length 10.10mm
Operation Temperature -40°C ~ +105°C
Pitch None
Shielding Shielded
Current Rating 1.9A
Width 10.10mm
Height 4.50mm
Packaging TAPE&REEL

More Information

The TDK SLF10145T-220M1R9-PF is a fixed inductor designed for surface-mount applications. With a 22µH inductance value, it offers reliable performance in various electronic circuits. This inductor features a compact size of 10.0 x 14.5 x 4.5 mm, making it suitable for space-constrained applications. Its construction ensures low DC resistance, which minimises power loss and enhances efficiency. The SLF10145T-220M1R9-PF is known for its high current handling capability, which provides stable operation even under demanding conditions. The inductor’s high saturation current rating prevents performance degradation in high-current applications, ensuring robust performance across a range of devices.

Where Can You Employ the TDK SLF10145T-220M1R9-PF, Fixed Inductor?

  • Power Supply Circuits
  • DC-DC Converters
  • Signal Filtering
  • Switching Regulators

Special Features and Benefits of Using the TDK SLF10145T-220M1R9-PF, Fixed Inductor

  • High current handling capability
  • High saturation current rating
  • Efficient power conversion
  • Compact design for space-saving
  • Reliable performance in high-current scenarios
  • Reduced power loss and heat generation
