CORE MASTER WHI0402-5N6J-N, INDUCTOR FIXED 0402 5.6NH SMD

WHI0402-5N6J-N
brand logo

HT Part No. HT194626

Mfr. Part No. WHI0402-5N6J-N

Manufacturer: CORE MASTER

Technical Documents: Datasheet(datasheets)

3124 - In Stock pcs
Price:
£ 0.10
Units Per Unit Price
1 - 3999 £ 0.10
4000 + £ 0.097
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Height 0.66mm
Manufacturer CORE MASTER
DC Resistance (DCR) 83m Ohms
Length 1.19mm
Series WHI
Shielding Unshielded
Operation Temperature N/A

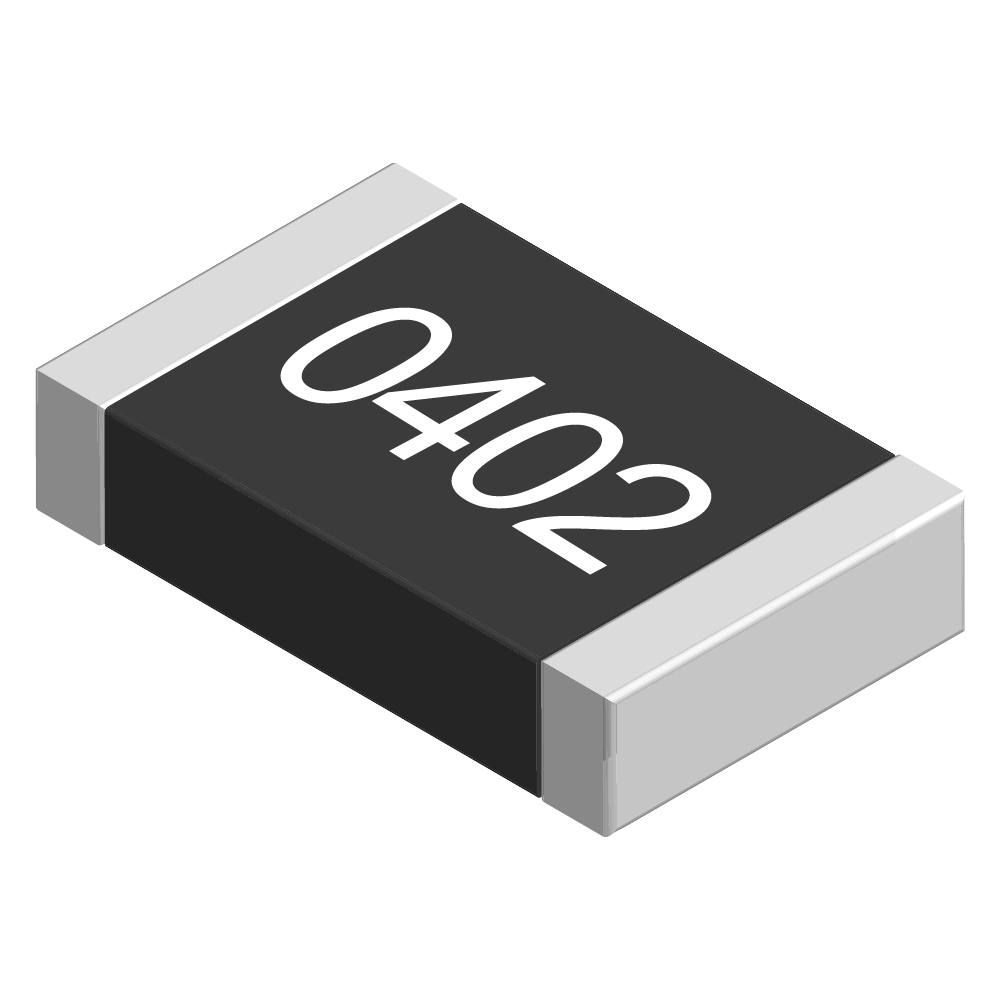

Package / Case 0402 (1005 Metric)
Mounting Type SMT
Pitch None
Inductance 5.6nH
Applications General Purpose
Diameter N/A
Width 0.64mm
Technology Wire Wound
Current Rating 760mA
Current - Saturation (Isat) N/A
Tolerance ±5%
Rohs ROHS
Packaging TAPE&REEL

More Information

The CORE MASTER WHI0402-5N6J-N is a high-performance fixed inductor designed for precision applications. With a compact 0402 package and a nominal inductance of 5.6 nH, this surface-mount device (SMD) offers excellent performance in high-frequency circuits. Its features include low DC resistance, high current handling capacity, and stable inductance across a wide range of frequencies. These characteristics make it ideal for use in RF circuits, filtering applications, and signal processing. The inductor's small size and robust construction also ensure reliability and ease of integration into compact electronic designs.

Unique Advantages of Using the CORE MASTER WHI0402-5N6J-N, Fixed Inductor

  • Low DC resistance
  • High current capacity
  • Stable inductance across frequencies
  • Reliable performance in high-frequency circuits
  • Easy integration into compact designs

Versatile Uses of the CORE MASTER WHI0402-5N6J-N, Fixed Inductor

  • RF Circuits
  • Filtering Applications
  • Signal Processing
  • Consumer Electronics
  • Telecommunications
  • Automotive Electronics
