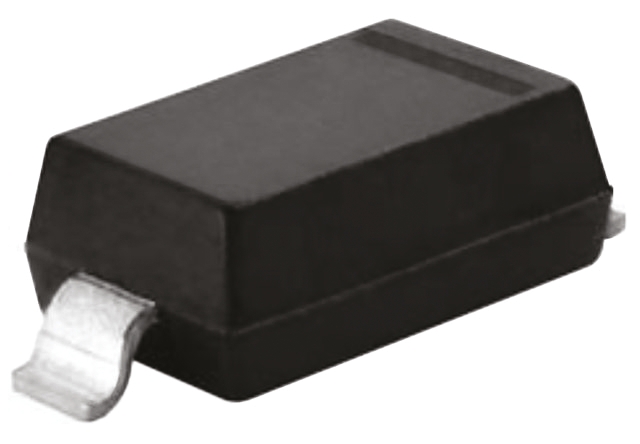

DIODES BAT46W-7-F, DIODE SCHOTTKY 150mA 100V SOD123

BAT46W-7-F
brand logo

HT Part No. HT299808

Mfr. Part No. BAT46W-7-F

Manufacturer: DIODES

Technical Documents: Datasheet(datasheets)

85 - In Stock pcs
Price:
£ 0.032
Units Per Unit Price
5 - 2999 £ 0.032
3000 + £ 0.024
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Peak Repetitive Reverse Voltage (VRRM) 100V
Manufacturer DIODES
Polarity Cathode
Average Rectified Current 150mA
Diode Configuration Single
Reverse Recovery Time (Trr) N/A
Operating Temperature -55°C~+125°C
Rohs ROHS
Series Schottky Diode
Mounting Type SMT
Package / Case SOD123
Applications General Purpose
Packaging TAPE&REEL

More Information

The DIODES BAT46W-7-F is a Schottky diode designed for high-speed switching applications. It has a maximum forward current of 150mA and can withstand reverse voltages up to 100V. Packaged in a compact SOD123, it is ideal for space-constrained designs.

Potential Benefits of the Schottky Diode

  • Schottky barrier technology
  • Low forward voltage drop
  • Fast switching speed
  • Efficient performance with minimal power loss
  • High reliability and longevity
  • Compact size for space-saving designs
  • Low heat generation due to low forward voltage drop
  • Suitable for high-frequency applications

Versatile Uses of the DIODES BAT46W-7-F, Schottky Diode

The DIODES BAT46W-7-F offers exceptional efficiency and reliability, making it a versatile choice for various electronic applications, such as:

  • Switching Power Supplies
  • High-Speed Digital Circuits
  • Rectification in Power Management Systems
  • Protection Circuits
  • Signal Demodulation
