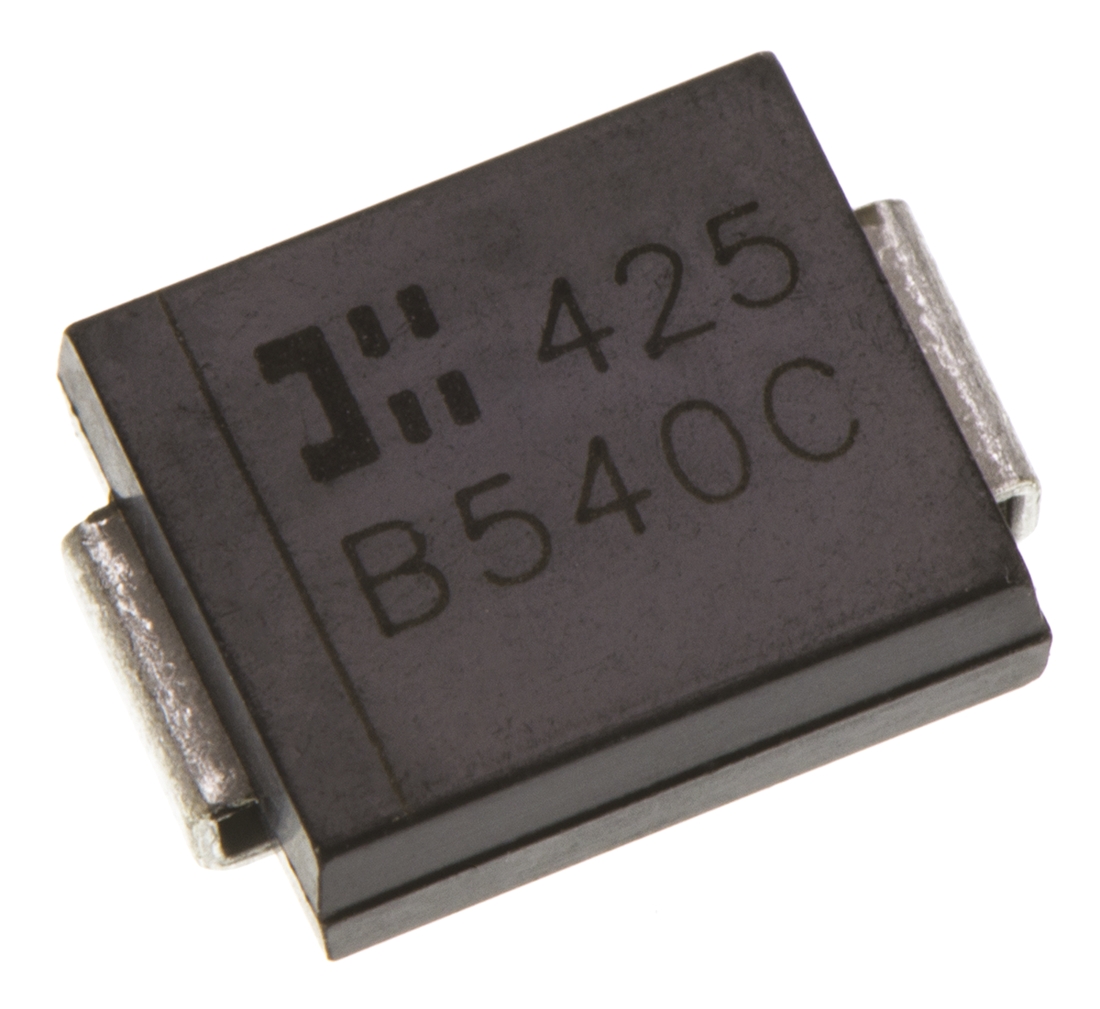

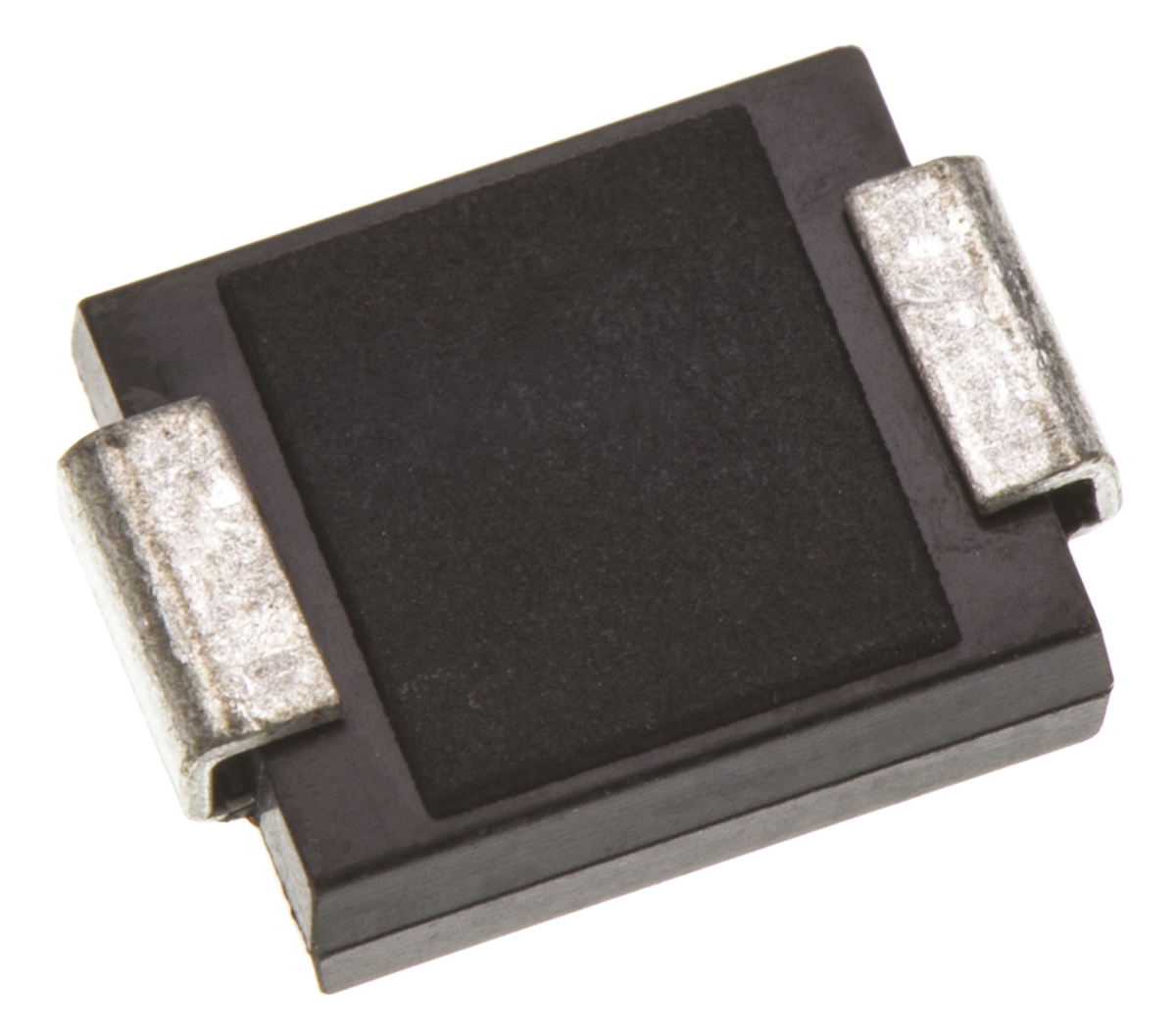

The B540C-13-F is a high-performance, 5A, 40V Schottky barrier diode from Diodes Incorporated, ideal for various low-voltage, high-frequency applications. This surface-mount (SMT) device offers excellent electrical characteristics and space-saving benefits for modern electronic designs.
Special Features of B540C-13-F - Diodes Incorporated Schottky Diode, 5A, 40V:
- Low forward voltage (Vf): Minimizes power loss during conduction.
- Fast switching speed: Enables efficient operation in high-frequency circuits.
- Low leakage current: Reduces standby power consumption.
- 40V reverse voltage rating: Suitable for a wide range of applications.
- 5A forward current rating: Handles moderate current loads.
- SMC (DO-214AB) package: Compact and industry-standard for easy integration.
Benefits of the Product Include:
- Improved efficiency in power conversion circuits.
- Faster signal processing in high-speed applications.
- Reduced standby power consumption in battery-powered devices.
- Reliable performance in various voltage environments.
- Supports moderate current requirements in diverse circuits.
- Simplified PCB design with a common SMT package.
Typical Uses of B540C-13-F - Diodes Incorporated Schottky Diode, 40V, 5A:
- Low-voltage power supplies
- Freewheeling diodes in DC-DC converters
- Polarity protection circuits
- High-frequency switching applications
- General-purpose rectification.
