PNOZmulti 2 Safe Input/Semiconductor Output Module

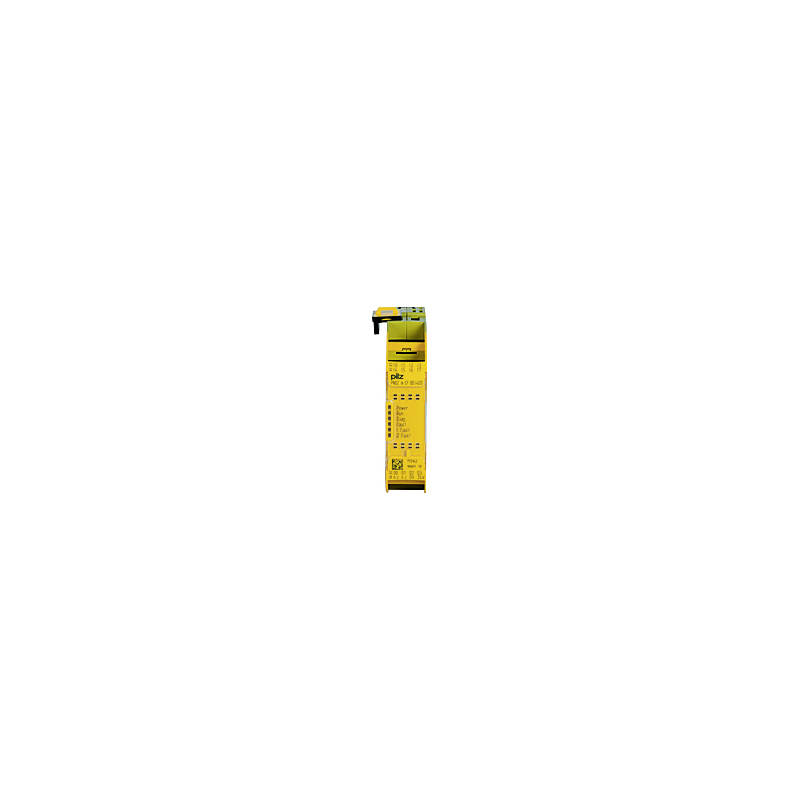

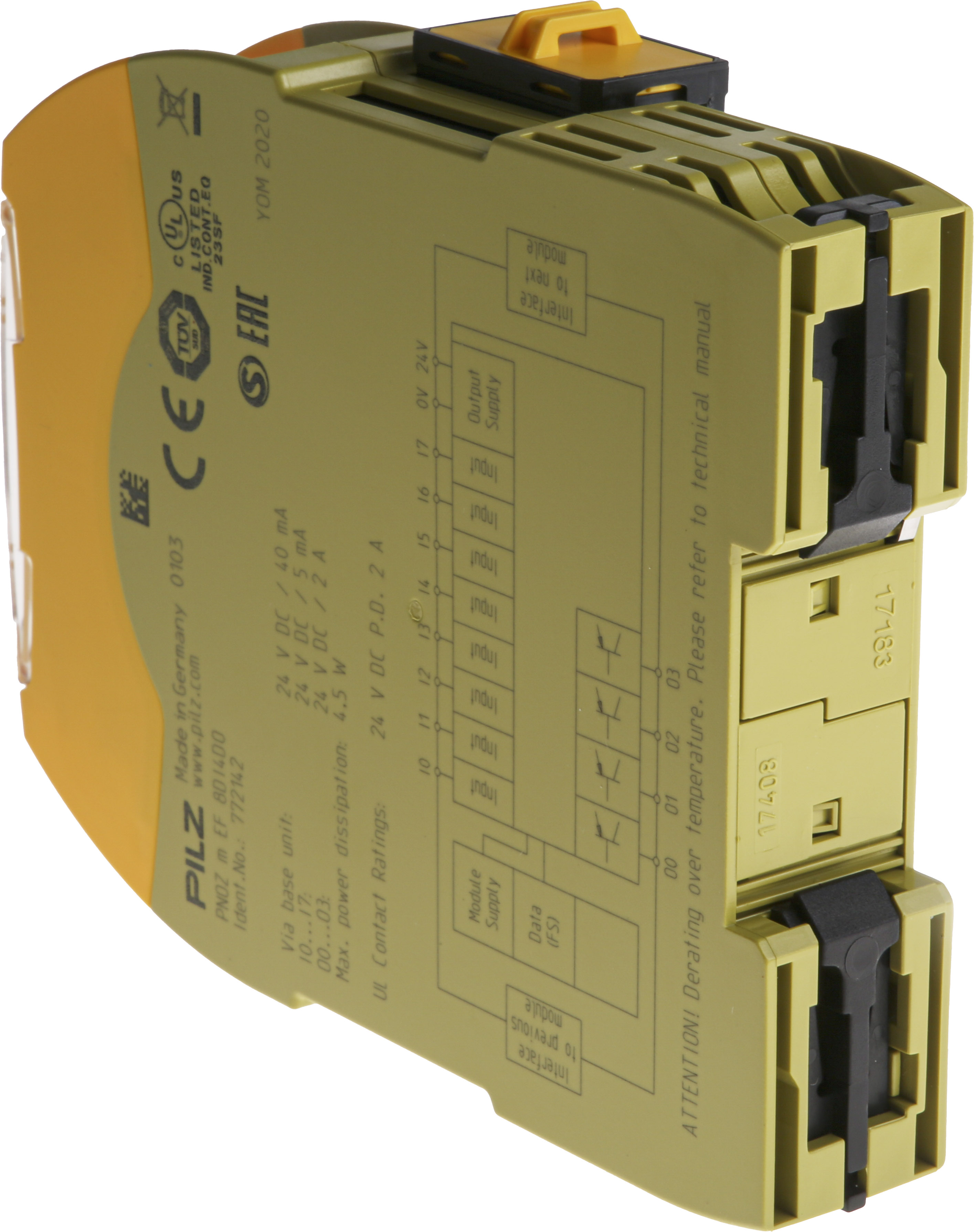

The PNOZ m EF 8DI4DO expansion module connects to a base unit from the PNOZmulti 2 configurable control system. It has 8 safe inputs and 4 safe semiconductor outputs. Depending on the application, it offers protection up to PLe of EN ISO 138491 and up to SIL CL 3 of EN IEC 62061.
Features and Benefits
Can be configured in the PNOZmulti Configurator
8 safe inputs
4 safe semiconductor outputs, up to PLe of EN ISO 138491 and up to SIL CL 3 of EN IEC 62061
LED for error messages, diagnostics, supply voltage, output circuits and input circuits
Test pulse outputs used to monitor shorts across the inputs
Monitoring of shorts between the safety outputs
Applications
The PNOZ m EF 8DI4DO can connect E-Stop, two-hand button, safety gate limit switch, start button, light beam, scanner, enabling switch, PSEN, operating mode selector switch.
