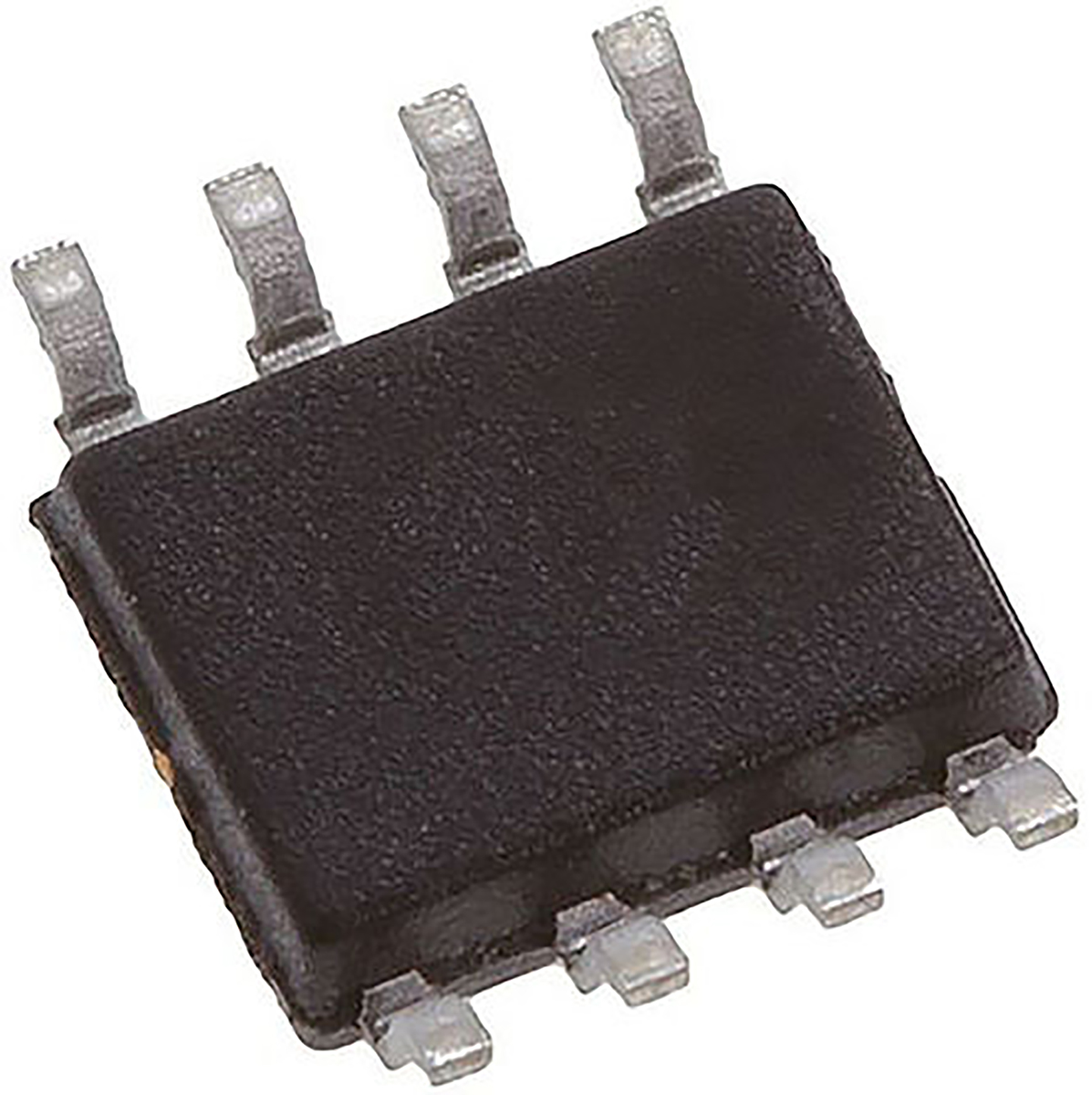

LM358DT STMicroelectronics, Low Power, Op Amp, 1.1MHz, 5 → 28 V, 8-Pin SOIC

lm358dt LM358DT STMicroelectronics, Low Power, Op Amp, 1.1MHz, 5 → 28 V, 8-Pin SOIC
LM358DT
LM358DT
HT24704
brand logo

HT Part No. HT24704

Mfr. Part No. LM358DT

Manufacturer: STMicroelectronics

Technical Documents: Low-power dual operational amplifiers Datasheet-caec0114(datasheets) ESD Control Selection Guide V1-f06aafe1(datasheets)

180 - In Stock pcs
Price:
£ 0.091
Units Per Unit Price
20 - 99 £ 0.091
100 - 199 £ 0.085
200 + £ 0.081
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Amplifier Type Low Power
Mounting Type Surface Mount
Package Type SOIC
Power Supply Type Dual, Single
Number of Channels per Chip 2
Pin Count 8
Typical Single Supply Voltage 5 → 28 V
Typical Gain Bandwidth Product 1.1MHz
Typical Dual Supply Voltage ±12 V, ±3 V, ±5 V, ±9 V
Typical Slew Rate 0.6V/µs
Maximum Operating Temperature +70 °C
Minimum Operating Temperature 0 °C
Typical Voltage Gain 100 dB
Rail to Rail No
Length 4.9mm
Width 3.9mm
Height 1.25mm
Typical Input Voltage Noise Density 55nV/√Hz
Dimensions 4.9 x 3.9 x 1.25mm
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=7140827&DisplayLogo=False

More Information

LM158, LM258, LM358, Low Power Dual Operational Amplifiers with Low Input Bias Current The LM158, LM258, LM358 operational amplifiers consist of two independent, high-gain, internally frequency-compensated circuits. In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground. Designed to operate from a single power supply
Large DC voltage gain: 100 dB
Wide bandwidth (unity gain): 1.1 MHz
