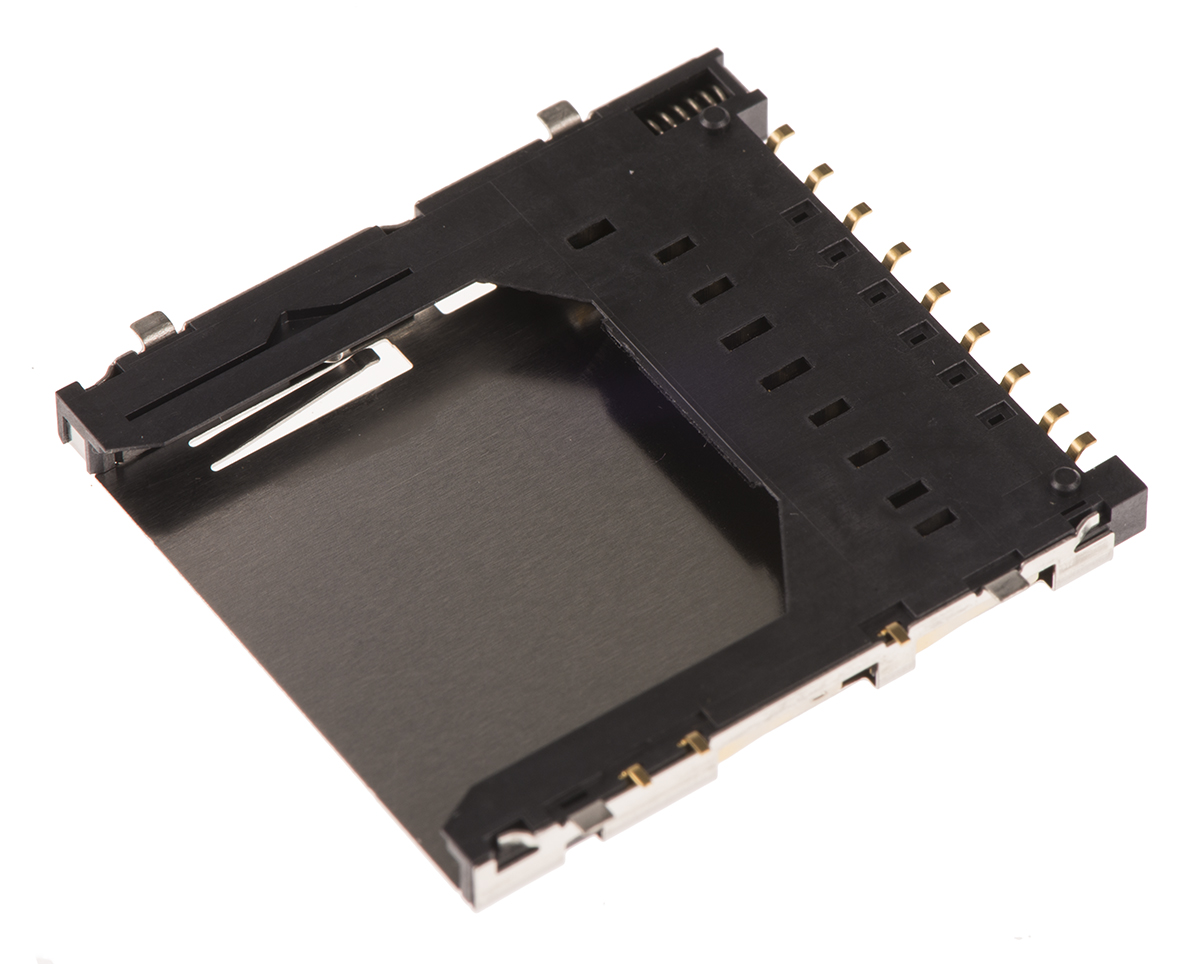

Hirose 9 Way Right Angle SD Card Memory Card Connector With Solder Termination

dm1aa-sf-pej82 Hirose 9 Way Right Angle SD Card Memory Card Connector With Solder Termination
DM1AA-SF-PEJ(82)
DM1AA-SF-PEJ(82)
HT25244
brand logo

HT Part No. HT25244

Mfr. Part No. DM1AA-SF-PEJ(82)

Manufacturer: Hirose

Technical Documents: Hirose DM1 Series SD Memory Card Connector-349433ef(datasheets) PCN-58f568d6(datasheets) DM1 SD memory card connector - drawing-441e210c(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 1.78
Units Per Unit Price
450 + £ 1.78
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Card Type SD Card
Gender Female
Number of Contacts 9
Number of Rows 1
Pitch 2.5mm
Body Orientation Right Angle
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Contact Plating Gold
Termination Method Solder
Housing Material Thermoplastic
Length 30.5mm
Width 28.0mm
Depth 2.9mm
Minimum Operating Temperature -25°C
Series DM1
Dimensions 30.5 x 28 x 2.9mm
Maximum Operating Temperature +85°C
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1664880&DisplayLogo=False

More Information

Hirose DM1 Series SD Memory Card Connector DM1 series SD memory card connector with a push in, push out ejection mechanism for reliable card insertion and withdrawal. A metal cover on the back of the connector enables it to withstand a card insertion force of up to 400N when accidentally dropped or hit. A moderate pull-out force of 4N prevents damage to the connector when the card is accidentally released. This DM1 SD memory card connector also features a built-in lock to hold the card securely in place and a card detection and write protection switch. Features and Benefits Reliable push in, push out ejection
Up to 400N card insertion force
Moderate pull out force of 4N
Built-in lock function
Card detection switch
Write protection switch Applications These DM1 series SD memory card connectors are suitable for use with Notebook PCs, digital cameras, PDAs, audio video equipment and other devices utilizing SD I/O cards.
