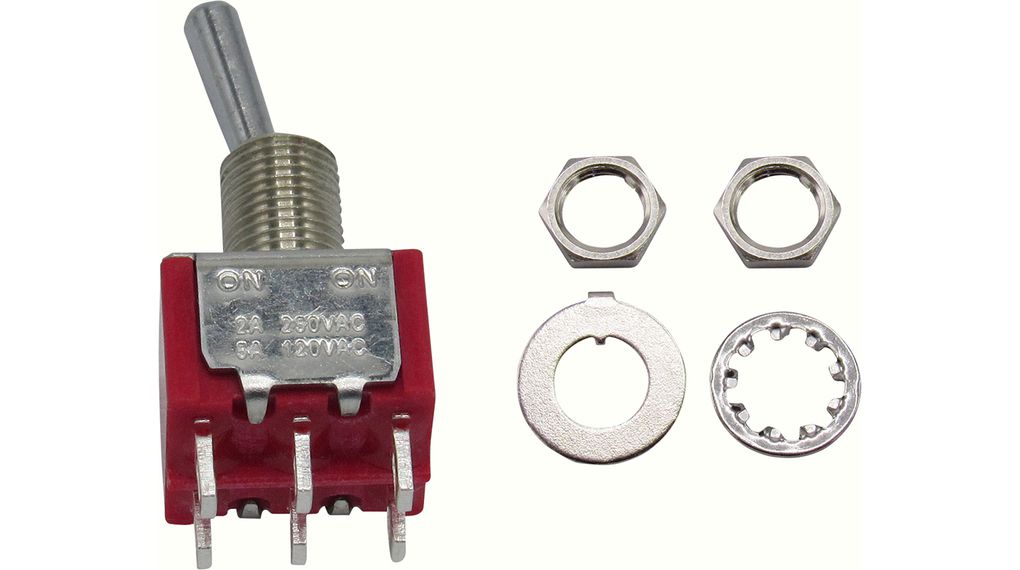

Toggle Switches

Toggle switches, named after their toggle action, are integral control devices used in a wide array of electronic and electrical systems. They are manually operated switches that either open or close an electrical circuit by shifting a handle or lever back and forth. Toggle switches are available in a wide variety of configurations, styles, and sizes; the most common out there include SPST, SPDT, DPST, and DPDT, among others, to address different operational requirements. They are used in many applications due to their durability, ease of use and simplicity.

How Do Toggle Switches Operate?

In order to get better operational results out of toggle switching, it is essential to consider its fundamental components and how they interact with each other. Key components and their functions include:

• Actuator (in the form of a lever or handle): A crucial part of the switch that the user directly interacts with by moving it back and forth.
• Contacts: Metal terminals that complete or interrupt the circuit.
• Casing: The outside protective housing that shields the internal components.

Components Operations

• Actuator: By moving the actuator, it rotates around a set point within the switch.
• Contacts: The rotation of the actuator causes the movable contact to connect or disconnect with the stationary contact.
• Connection and Disconnection: As the contacts connect, the circuit closes, enabling the current to flow through the switch. When the electrical contacts disconnect, the circuit breaks and the current flow stops.

Typical Toggle Switch Uses

Toggle switches can be found almost everywhere in electronic and electrical systems due to their versatility. Common applications include:

• Home Appliances: Used in fans, lamps, and kitchen equipment.
• Electronics: Applied in electronic circuits and machines to control power supply and signal switching.
• Industrial Machinery: Controlling different operations of industrial machinery.
• Offshore and Aviation: Control crucial operations like communication systems, navigation lights, and engine control.
• Automotive: Fog lights, auxiliary lights, and headlights of different vehicles.

Understanding Toggle Switch Classification by Pole and Throw

• Single Pole, Single Throw (SPST): The simplest type of toggle switch has one input and one output and performs as an on/off switch. Typical examples include light switches or power switches for small appliances.
• Double Pole, Double Throw (DPDT): This type features two inputs and two outputs, managing two different circuits simultaneously with a single toggle action.
• Double Pole, Single Throw (DPST): Comes with two inputs and two outputs for controlling two separate circuits. Generally, used in applications where different circuits need to be turned on or off together.
• Double Pole, Double Throw (DPDT): This type has two inputs and four outputs, enabling each input to connect to one of two outputs. It simply performs the function of two SPDTs operated together and is utilised in more complex applications.
