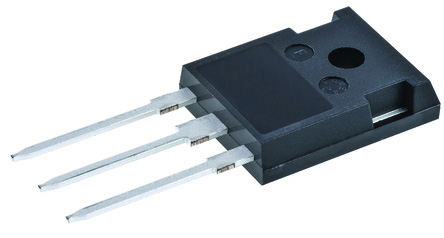

IXYS CLA80E1200HF, THYRISTOR DIS.SINGLE 80A 1200V PLUS247 THT

CLA80E1200HF
brand logo

HT Part No. HT256347

Mfr. Part No. CLA80E1200HF

Manufacturer: IXYS

Technical Documents: Datasheet(datasheets)

67332 - In Stock pcs
Price:
£ 3.55
Units Per Unit Price
1 - 29 £ 3.55
30 + £ 3.23
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Applications N/A
Packaging TUBE
Current On State (ITav) 80A
Configuration Single
Tq 150us
Rohs ROHS
Series Thyristor Phase Control
RMS On State (ITrms) 126A
Current Temperature (IC) 115°C
Current Hold (IH) 100mA
Forward Drop (VT) 1.4V
Trr N/A
Manufacturer IXYS
Mounting Type THT
Package / Case PLUS247
Voltage (VRRM) 1.2kV
Gate Trigger (Vgt) 1.5V
Power Dissipation 620W
Junction Temperature (Tj) N/A
Operating Temperature -40°C~+125°C

More Information

The IXYS CLA80E1200HF is a high-performance thyristor designed for various electronic applications. It is a single thyristor with a current of 80A and a voltage rating of 1200V, housed in a PLUS247 Through-Hole Technology (THT) package.

Possible Advantages of the Thyristor

  • Efficient power handling with high current and voltage ratings
  • Reliable performance in demanding environments
  • Easy installation with THT package
  • Enhanced thermal management
  • Low power losses

Versatile Uses of the IXYS CLA80E1200HF, Thyristor

The IXYS CLA80E1200HF thyristor offers robust performance, making it ideal for high-power applications requiring efficient and reliable switching capabilities, such as:

  • Power Supplies and Converters
  • Motor Control Circuits
  • Lighting Dimmers
  • AC and DC Motor Drives
  • Industrial Automation Systems
