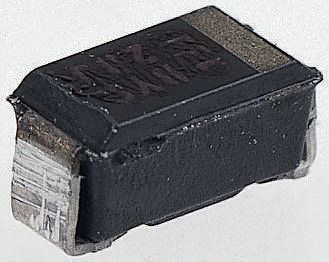

STPS2L40U - DIODE SCHOTTKY 2A 40V DO214AA SMB ST

STPS2L40U
brand logo

HT Part No. HT299481

Mfr. Part No. STPS2L40U

Manufacturer: STM

Technical Documents:

17 - In Stock pcs
Price:
£ 0.14
Units Per Unit Prices
2 - 2499 £ 0.14
2500 + £ 0.12
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Mounting Type SMT
Packaging TAPE&REEL
Manufacturer STM
Package / Case DO214AA (SMB)
Average Rectified Current 2A
Reverse Recovery Time (Trr) N/A
Peak Repetitive Reverse Voltage (VRRM) 40V
Applications General Purpose
Rohs ROHS
Series Schottky Rect.
Diode Configuration Single
Polarity Cathode
Operating Temperature +150°C

More Information

The STPS2L40U is a surface-mount Schottky diode from STMicroelectronics designed for use in various low-voltage, high-frequency applications. It offers several distinct advantages over traditional silicon rectifiers.

Distinct Features of STPS2L40U - STM General Purpose Schottky Diode, 2A, 40V:

  • Low Forward Voltage (VF): Minimizes conduction losses, improving efficiency in power supply circuits.
  • Fast Switching Speed: Enables operation at high frequencies, making it ideal for switching power supplies and DC-DC converters.
  • Low Leakage Current: Reduces standby power consumption.
  • AEC-Q101 Qualified: Meets the stringent quality standards required for automotive applications (note: verification recommended for specific applications).

Why Buy STPS2L40U Schottky Diode?

  • Improved efficiency in power supplies due to reduced conduction losses.
  • Enables miniaturization of circuitry due to the small surface-mount package.
  • Enhanced performance in high-frequency applications.
  • Contributes to lower overall power consumption in electronic devices.

STPS2L40U: Application Areas

  • Telecom power supplies
  • On-board DC-DC converters
  • Low-voltage, high-frequency inverters
  • Freewheeling diodes
  • Polarity protection circuits.
