Rotary Encoded DIP Switches

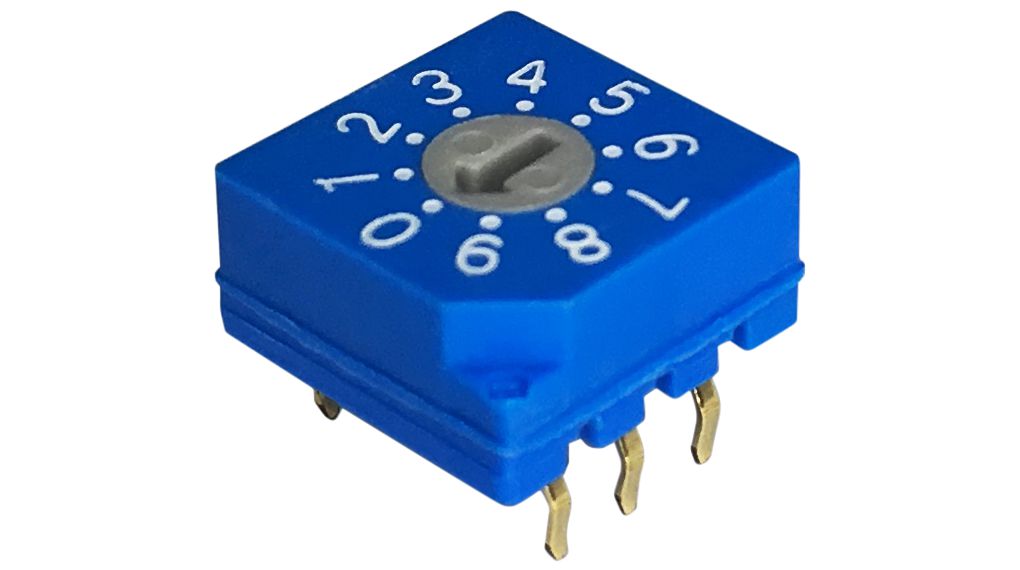

Rotary encoded (Dual-in-line Package) DIP switches are electromechanical devices that let you set or configure binary values in a device or electrical circuit. A DIP switch features a compact design with two parallel rows of pins, allowing for manual electrical control. Additionally, the rotary mechanism of the switch showcases the significance of its ability to be adjusted by simply rotating a wheel or dial. Each dial position represents a distinct binary value, enabling users to configure unique on/off or high/low combinations for the switch.

Furthermore, these switches are typically found in the configurational settings of electronic devices. They provide a straightforward, hands-on approach to setting circuit parameters, such as address configurations and mode options. Rotary DIP switches simplify configurations by allowing multiple adjustments through the rotation of a single knob.

What are the Typical Uses of Rotary Encoded DIP Switches?

Rotary-encoded DIP switches are utilised in a wide array of applications across different industries, including:

• Healthcare Equipment
• Industrial Control Systems
• Audio/Video AV Equipment
• Communication Devices
• Instrumentations
• Consumer Electronics

How Do Rotary Encoded DIP Switches Operate?

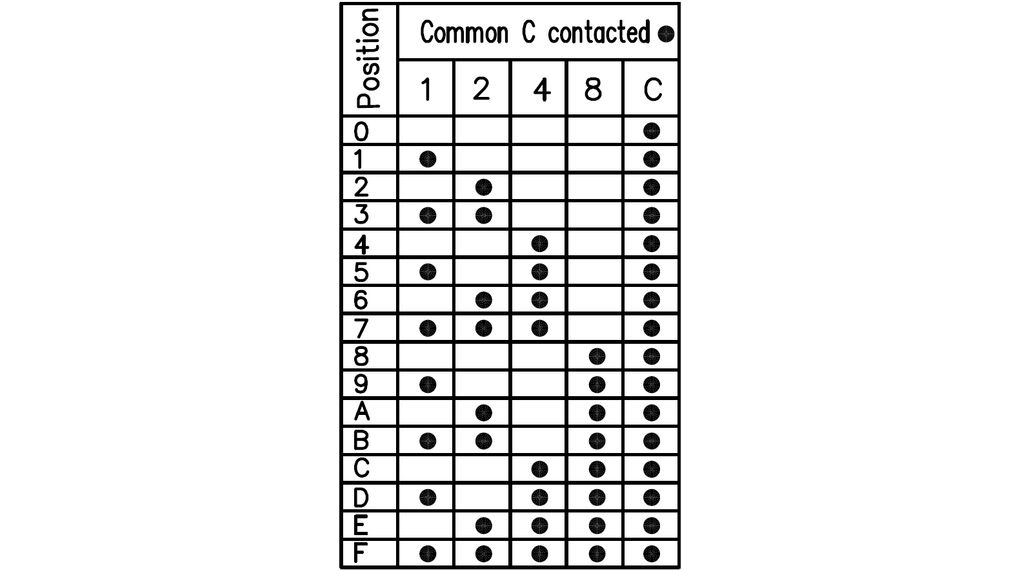

A rotary DIP switch operates by aligning binary-coded positions with different settings. Each dial position corresponds to a binary value, like 0 or 1 (typically on/off), and contacts in a circular layout connect or disconnect as the dial rotates to create the desired binary configuration.

What are the Potential Advantages of Using Our Innovative Rotary Encoded DIP Switches?

• They offer a simple and manual way to adjust desired settings in electronics.
• Crucial for applications where easy and quick configurations are required without using additional tools.
• They offer enhanced durability and are less prone to failure than complex electronics.
• Cost-effective solutions compared to other configuration methods.
• Perfect for applications with budget issues.
• Allows users to detect the positions and to change them by simply rotating the wheel/dial.
• Provides physical feedback mechanism.
• Reliable and compact design
